PT1340

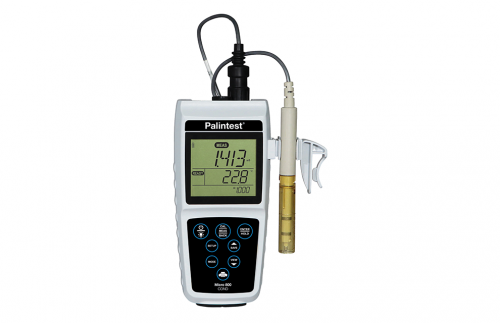

The Micro 800 meter combines the top of the range conductivity electrode with additional software functionality. Ensure good laboratory practice (GLP) by utilising advanced features such as calibration reminders, and download data via USB:
- Toggle between conductivity, TDS or salinity, making the kit suitable for use in a diverse range of applications from drinking water, cooling towers and effluent testing
- Large onboard memory with simple data download via USB or RS232, perfect for demonstrating compliance
- Large LCD screen full of test information allowing full control and ensuring ease of use for operators whatever the test environment.
Specification
| Conductivity: | |
| Range | 0 - 200 mS/cm |
| Resolution | 0.01 µS/cm - 0.1 mS/cm |
| Accuracy | ± 1% full scale |
| Calibration | Auto/manual; one point per range |
| TDS: | |
| Range | 0 - 200 ppt |
| Resolution | 0.01 ppm - 0.1 ppt |
| Accuracy | ± 1% full scale |
| Calibration | Manual; one point per range |
| Salinity: | |
| Range | 0 - 50 ppt |
| Resolution | 0.01 ppt |
| Accuracy | ± 1% full scale |
| Calibration | Manual; one point per range |
| Temperature: | |
| Range | -10°C – +110 °C |
| Resolution | 0.1°C |
| Accuracy | ± 0.5°C |
| Calibration | Offset in 0.1 increments, ± 10°C |
| Instrument: | |
| Memory | Up to 500 data sets |
| Output | USB and RS232 |
| Real-Time Clock | Time and date stamp on calibration and stored data |
| Power | 2x AA batteries |
| Dimensions and Weight | 200 x 83 x 57 mm, 500g |
Additional Information
| PT1340 | Micro 800 Conductivity/TDS Handheld Meter |
| PT1340CON | Replacement probe for Micro 800 Conductivity/TDS meter |
| PT142/2 | High range conductivity solution, 500 ml, 12.88 mS/cm |
| PT142/3 | Mid range conductivity solution, 500 ml, 1412 µS/cm |
| PT142/4 | Low range conductivity solution, 500 ml, 74 µS/cm |
| PT142/8 | TDS calibration solution (442), 500 ml, 3000 ppm |
| PT142/9 | TDS calibration solution (442), 500 ml 300 ppm |
| PT142/10 | TDS calibration solution (442), 500 ml 50 ppm |
