PT1350

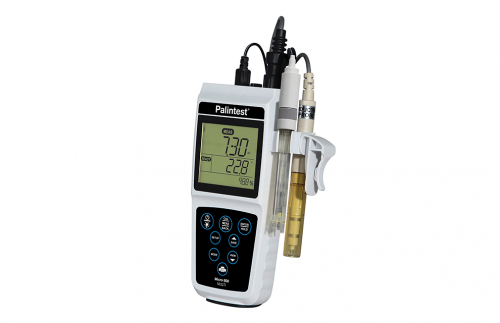

The Micro 800 combines the top of the range conductivity and pH electrodes to allow for simple and accurate measurements in a variety of applications. Advanced features such as calibration reminders, pH slope indicators and USB data transfer facilitate good laboratory practice (GLP):
- Carry out multiple measurements simultaneously, and toggle results on the intuitive user-interface
- Intelligent software with diagnostics including troubleshooting prompts and a simple calibration process
- Automatically store the date and time of results and calibration data, and export by USB.
Specification
| pH Range | -2.00 - 16.00 pH |
| pH Resolution | 0.01 pH |
| pH Accuracy | ± 0.01 pH |
| pH Calibration | Up to 6 points |
| mV Range | ± 2000 |
| mV Resolution | 0.1 mV (for ± 999.9 mV) 1 mV beyond |
| mV Accuracy | ± 0.2 +2 LSD or ± 0.5% (whichever is greater) |
| Conductivity Range | 0 - 200 mS/cm |
| Conductivity Resolution | 0.01 µS/cm - 0.1 mS/cm |
| Conductivity Accuracy | ± 1% full scale |
| Conductivity Calibration | Auto/Manual; 1 point per range |
| TDS Range | 0 - 200 ppt |
| TDS Resolution | 0.01 ppm - 0.1 ppt |
| TDS Accuracy | ± 1% full scale |
| TDS Calibration | Manual; 1 point per range |
| Temperature Range | -10 – +110°C |
| Temperature Resolution | 0.1°C |
| Temperature Accuracy | ± 0.5°C |
| Temperature Calibration | Offset in 0.1 increments, ± 10°C |
| Memory | Stores up to 500 data sets |
| Output | USB or RS232 |
| Real-Time Clock | Time and data stamp on calibration and stored data |
| Power | 2x AA batteries |
| Dimensions and Weight | 200 x 83 x 57 mm, 500g |
Additional Information
| PT1350 | Micro 800 Multiparameter Meter |
| PT1330PH | Double junction pH electrode |
| PT1340CON | Conductivity/TDS electrode |
| PT105/5 | pH buffer pack (4/7/10) |
| PT105/1 | pH 4 buffer solution, 500 ml, pH 4.01 |
| PT105/2 | pH 10 buffer solution, 500 ml, pH 10.0 |
| PT105/3 | pH 7 buffer solution, 500 ml, pH 7.00 |
| PT142/2 | High range conductivity solution, 500 ml, 12.88 mS/cm |
| PT142/3 | Mid range conductivity solution, 500 ml, 1412 µS/cm |
| PT142/4 | Low range conductivity solution, 500 ml, 74 µS/cm |
| PT142/8 | TDS calibration solution (442), 500 ml, 3000 ppm |
| PT142/9 | TDS calibration solution (442), 500 ml, 300 ppm |
| PT142/10 | TDS calibration solution (442), 500 ml, 50 ppm |
