PTW10005

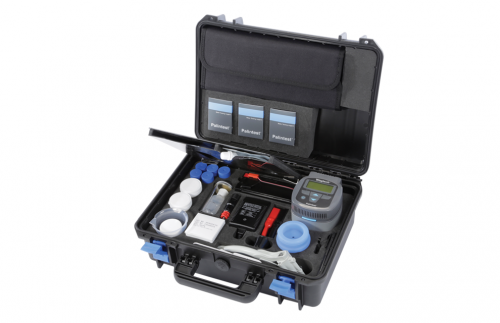

Widely used by organisations involved in large-scale emergencies or simple water quality testing projects, the Potatest is a lightweight microbiological test kit offering low-cost, rapid response testing of basic water quality parameters.
Designed to complement the increased emphasis now being placed upon water safety plans (WSPs) and their role in assessing and managing risk throughout each step of the drinking water supply process:
- Removable water safety kit (WSK) – contains instruments and visual test equipment to determine whether a full microbiological verification is required
- Rapid field microbiological analysis – using membrane filtration protocols for screening of faecal and/or total coliforms
- Supplied with consumables and parts sufficient for processing/analysing 200 samples.
Specification
| Microbiological Capacity | Wagtech incubator with consumables for 200 tests for thermotolerant/faecal coliforms or total coliforms. Optional Nutridisk capability for additional parameters including faecal streptococci, pseudomonas aeruginosa, and E. coli |
| Physico-Chemical Parameters | Free chlorine, combined chlorine, total chlorine, turbidity, pH |
| Test Protocols | 37°C and 44°C temperature selections, user selectable time profiles, automatic resuscitation period profile |
| Temperature Stability | ± 0.1°C |
| Temperature Control | Laser-trimmed thermistor pair with automatic temperature validation |
| User Interface | On screen and audible prompts available in English, French, Spanish and Chinese |
| Data Log | Last five incubation cycles performance report |
| Connectivity | Micro-USB connection to Windows and Android devices for data download |
| Power Supply | Replaceable sealed lead acid battery with mains, vehicle and external charging options |
| Power Consumption | High thermal efficiency heating system, five full cycles from a fully charged battery |
Additional Information
| Part Code | Description |
| PTW 10005 | Wagtech Potatest. Comprising: Wagtech incubator with standard test protocols and audible prompts, petri dish racks, high performance lead acid battery with capacity for at least 5 cycles per charge, mains charger with international adaptors, vehicle socket battery power lead, crocodile clip power leads. Membrane filtration assembly, bronze disc, pistol grip vacuum pump with no-kink silicone tubing, media measuring devices (MMDs x5), 38.1g membrane lauryl sulphate broth, Pasteur pipettes (x5), hand lens, forceps, aluminium re-usable petri dishes (x20), sterilised and sealed membrane filters (x200), absorbent pads (x200), absorbent pad dispenser, steel sampling cup, sampling cable. Polypropylene 250ml beaker, quick start prompt cards, sterilisable integrated work surface. Contour Comparator and discs, comparator cuvettes (x4), comparator reagents for 250 tests for free and total chlorine. Double-length turbidity tube. Pocket pH sensor and pH calibration buffers . Cuvette brush, dilution tube, crush/stir rods, De-Ion pack, instructions |
Spares and Consumables
| Part Code | Description |
| PTW10450 | Coliform starter pack - 200 tests for either thermotolerant (faecal) coliforms or total coliforms including membane filters, absorbent pads, membrane lauryl sulphate broth (38.1g) |
| PTW10452 | Membrane lauryl sulphate broth, 500g (MLSB) powder for field preparation of nutrient media. Supplied in sealed pack with tamper seal. |
| PTW10454 | Membrane lauryl sulphate broth, 38.1g MLSB powder for field preparation of nutrient media. Supplied in sealed pack with tamper seal. |
| PTW10459 | Membrane filters (200 pack) - White, gridded membrane for simple colony count. 0.45 µm mesh size, 47 mm diameter, supplied in sterile sealed individual pack. |
| PTW10460 | Absorbent pads and membranes (200 pack) - White, gridded membrane for simple colony count. 0.45 µm mesh size, 47 mm diameter, supplied in sterile sealed individual pack. Absorbent pads, 2 packs of 100 each for use with absorbent pad dispenser. |
| PTW10461 | Membrane filters (1000 pack) - White, gridded membrane for simple colony count. 0.45 µm mesh size, 47 mm diameter, supplied in sterile sealed individual pack. |
| PTW10462 | Absorbent pads and membranes, 1000 pack White, gridded membrane for simple colony count. 0.45 µm mesh size, 47 mm diameter, supplied in sterile sealed individual pack, 5 packs of 200 each. Absorbent pads, 10 packs of 100 each for use with absorbent pad dispenser. |
| PTW10463 | Absorbent pads (100 pack) - for use with pad dispenser. |
| PT1005 | Wagtech incubator - Replacement incubator for Potatest+, Potakit + and Potatech+. Excludes mains adaptor, in-vehicle charger and external battery connectors. |
| PTW10400 | Membrane filtration unit - Complete membrane filtration unit including sampling cup, retrieval cord, gas-grade silicone filtration assembly, reversible filter cup, bronze disc. |
| PTW10401 | Pistol grip hand vacuum pump - High performance vacuum pump with 6 mm tubing connector |
| PTW10420 | Aluminium petri dishes (x20), 47 mm diameter. |
NutriDisks
| Part Code | Description |
| PTW10060 | NutriDisk pack for faecal streptococci Azide NutriDisk set, 100 tests, supplied in sealed packs of 10. |
| PTW10062 | NutriDisk pack for pseudomonas aeruginosa Cetrimide NutriDisk set, 100 tests, supplied in sealed packs of 10. |
| PTW10064 | NutriDisk pack for E. coli and faecal coliforms M-FC NutriDisk set, 100 tests, supplied in sealed packs of 10. |
| PTW10065 | NutriDisk pack for total coliforms and E. coli Chromocult NPS NutriDisk set, 100 tests, supplied in sealed packs of 10. |
| PTW10066 | NutriDisk pack for total colony forming units plate count NutriDisk set, 100 tests, supplied in sealed packs of 10. |
| PTW10067 | NutriDisk pack for salmonella typhi Bismuth-Sulphite NutriDisk set, 100 tests, supplied in sealed packs of 10. |
| PTW10068 | NutriDisk pack for E. coli ECD NPS NutriDisk set, 100 tests, supplied in sealed packs of 10. |
| PTW10069 | NutriDisk pack for E. coli and coliforms Endo NPS NutriDisk set, 100 tests, supplied in sealed packs of 10. |
| PTW10468 | Faecal coliform ampoules - box of 50, 2.2 ml |
| PTW10470 | Total coliform ampoules - box of 50, 2.2 ml |
